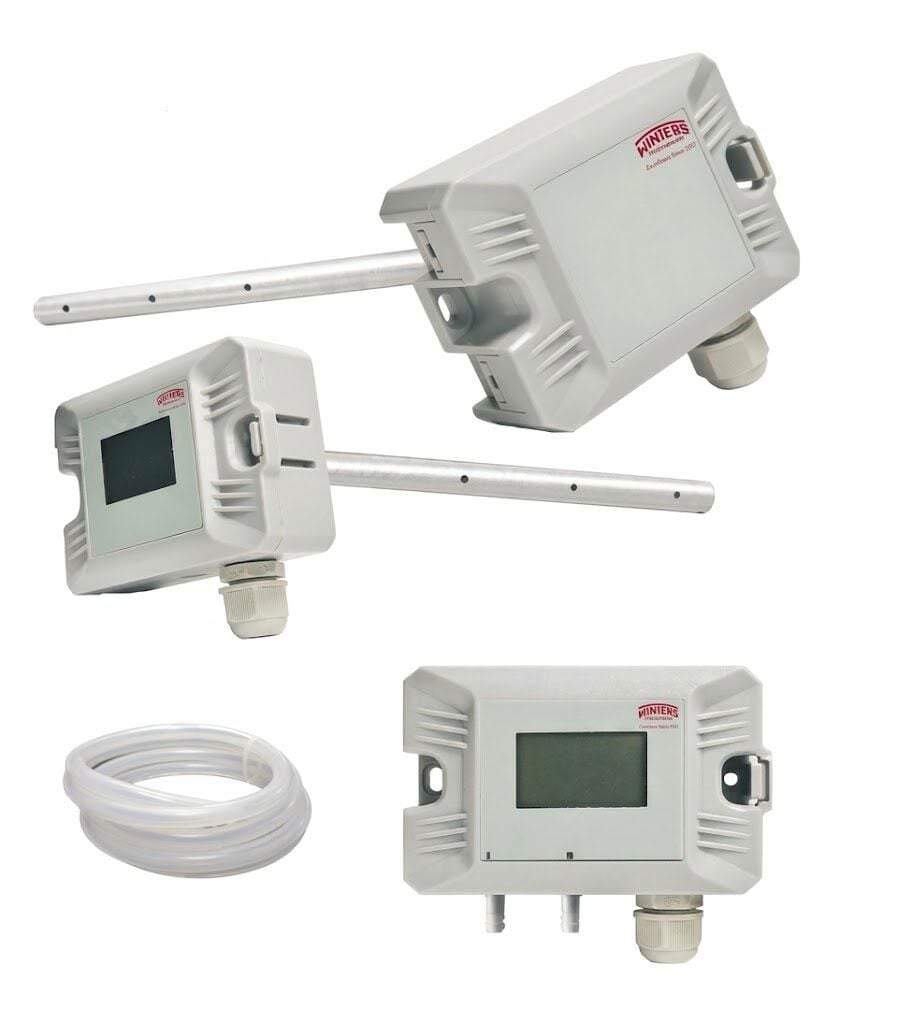

WPCM Hava Akış ve Hızı ölçen Transmitter
WPCM Hava Akış ve Hızı ölçen Transmitter WINTERS 5-sene Garanti
DESCRIPTION & FEATURES
- WPCM Series is an air velocity transmitter engineered for the building automation and HVAC/R industry
- The WPCM measures air velocity with selectable ranges and various outputs
- Designed with fixed duct mounting or more convenient remount mounting configurations
- Each module is equipped with a housing and duct mounting probe which is available in different lengths
- An adjustable collar is available for various insertion depths and suitable for round or rectangular ducts
- Complete protection against overvoltage, reverse polarity and EMC
- Customization available for dedicated installations and private labelling
- 5 year warranty
Applications
- WPCM is used in the measurement of air velocity in duct and ventilation equipment
- Appropriate for monitoring air and non-combustible gases
- The product is widely used in HVAC control systems of various types in commercial and government buildings as well as manufacturing and processing facilities
| Accuracy | 0.3 m/s + 2% FS (wind speed >3 m/s), reference 1 m/s = 2.24 mph |
| Output Signal | 4/20mA or 0/10V, RS485 |
| Power Supply | 12/30VDC, 24VAC ±20% |
| Long-term Stability | 1% Full Scale per year |
| Housing Temp. Range | -20° to 70°C / -4° to 158°F |
| Housing Material | ABS, rated IP54 |
| Display | LCD (optional) |
| Power Consumption | <1W |
| Probe Material | Integrated: Aluminium alloy, Remote: Stainless steel |
| Insertion Depth | Integrated: 100 to 210mm (3.94" to 8.27") Remote: 100mm (4"), 150mm (6") or 200mm (8") |
| Mounting | Integrated: Screw mount with Housing or Adjustable Collar (Plastic ABS), Remote: Threaded (G1/2" male) or flange mount (DN15, 1/2") |
| Media Temperature | Integrated: -20 to 70°C (-4° to 158°F), Remote: -40 to 400°C (-40° to 752°F) |
| Product Certification | CE |
