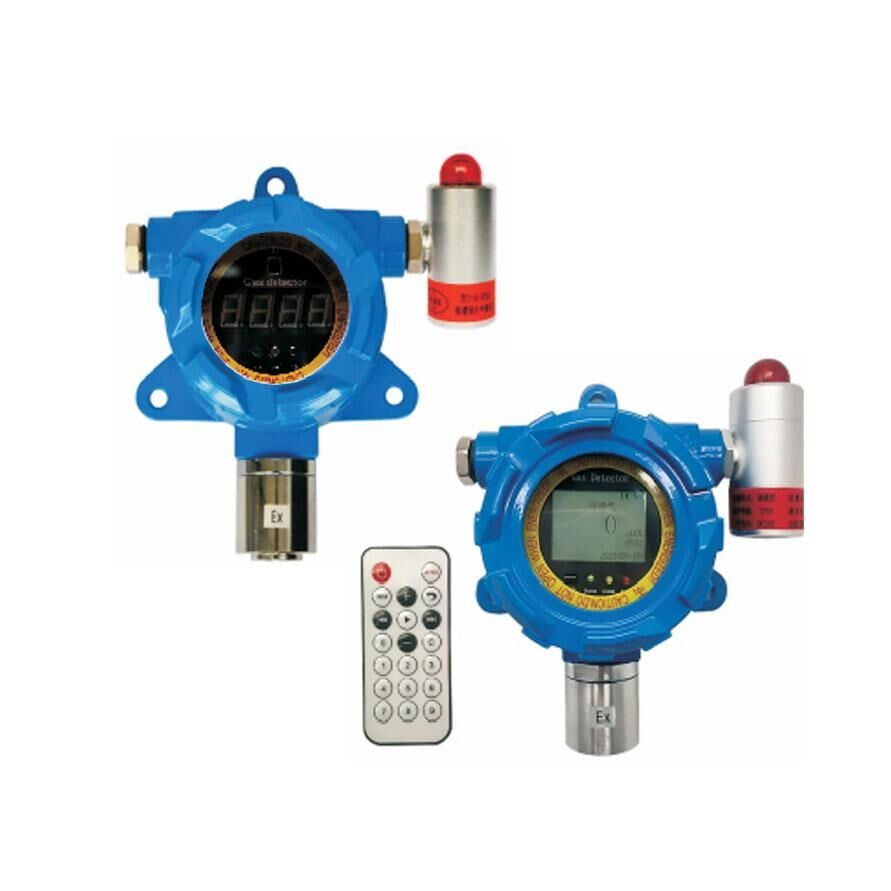

WNO2 Nitrojen Diyoksit (NO2) Gaz Detektörü WINTERS
WNO2 Nitrojen Diyoksit (NO2) Gaz Detektörü WINTERS
DESCRIPTION & FEATURES
- The WNO2 Series is specifically designed for continuous monitoring of NO2 gas concentration in any environment
- Heavy-duty die-cast aluminum housing for installation in a wide range of environmental areas
- Designed for wall-mounting for convenient installation
- Available with built-in display (LED or LCD) screen and audible/visual alarm for on-site monitoring and immediate signalling (audible alert)
- May be integrated into various gas alarm systems or PLC/DCS control systems with standard analogue or RS485 (Modbus RTU) output
- Customization available for dedicated installations and private labelling
- 1 year warranty
Applications
- The WNO2 is a product which is suitable for all environments where nitrogen dioxide gas is present or may be present
- Appropriate for installation in occupied (meeting & board rooms etc) and unoccupied areas (duct and ventilation chambers, hazardous equipment)
- Widely used for industrial safety and environmental quality monitoring, combustion process control, laboratory safety and as a method for early fire safety warning
| Detection Principle | Electrochemical |
| Measurement Range | 0-20 PPM |
| Output Signal | 4-20mA (3-wire), RS485 (Modbus-RTU) |
| Power Supply | 24VDC |
| Display | No Display, LED or LCD; Resolution 0.1 PPM |
| Alarm Mode | Audible & visual (≥85dB buzzer) |
| Alarm Point | 5 PPM |
| Response Time | T90 ≤ 60 s; Warm-up <30 s |
| Accuracy | ≤ ±3% FS; Repeatability ≤ ±2% |
| Working Environment | -10° to 50°C (14° to 122°F) & 15–90%RH, non-condensing |
| Sensor Lifespan | Typical 2–3 years (depending on ambient conditions) |
| Installation | Wall-mounted |
| Housing Material | Die-Cast aluminum |
| Enclosure Rating | IP65 |
| Certification | CE |
