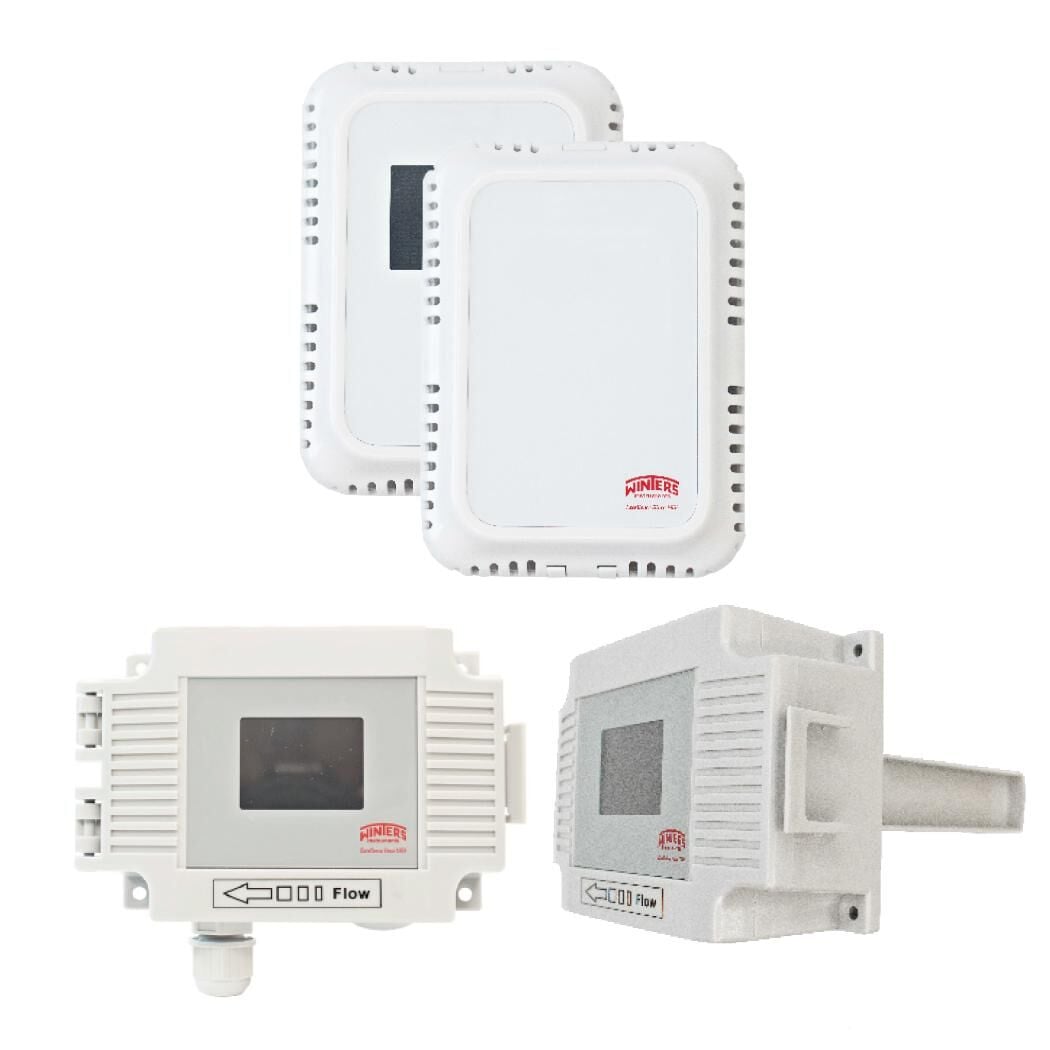

WCES Hava Kalitesi Sensörleri Hepsi içinde
TANIM & ÖZELLİKLER
WCES Series is a comprehensive air quality detector with high-precision sensor elements with digital circuitry
The WCES detects and measures simultaneous environments all at once
Designed for wall-mounting in occupied areas and with fixed duct mounting for ventilation systems
Each module may be equipped with as few as two (2) sensing elements or as many as eight (8) sensing elements
Sensing types include temperature, humidity, TVOC, PM2.5, PM10, CO, CO2, CH2O (formaldehyde), NH3 (ammonia) and O3 (ozone)
Available with and without an LCD screen and the standard output is RS485 (Modbus RTU)
Complete protection against overvoltage, reverse polarity and EMC interference
Customization available for dedicated installations and private labelling
5 year warranty
UYGULAMALAR
WCES all-in-one unit in the detection and measurement of air quality with a variety of embedded sensors
Appropriate for installation in occupied (meeting & board rooms etc) and unoccupied areas (duct and ventilation chambers)
Widely used in intelligent HVAC systems in modern buildings, machinery & equipment, train stations, subways, airports, schools and other places
The product is widely used in HVAC control systems of various types in commercial and government buildings as well as manufacturing and processing facilities
|
Power Supply |
24 VDC standard, 24 VAC optional |
|
Mounting Height |
Wall-mounted position, 1.2m-1.8m (3.9’-26.25’) above ground level |
|
Response Time |
T90 ≤ 60s |
|
Warm-up Time |
< 600 s |
|
Working Environment |
−10° to 60°C (14°F to 140°F) & 0–95%RH, non-condensing |
|
Housing Material |
ABS + PC |
|
Protection Class |
IP30 (indoor type), IP65 (duct type) |
|
Fire Rating |
V-0 per UL94 standard |
|
Display |
LCD (optional) |
|
Certification |
CE |
