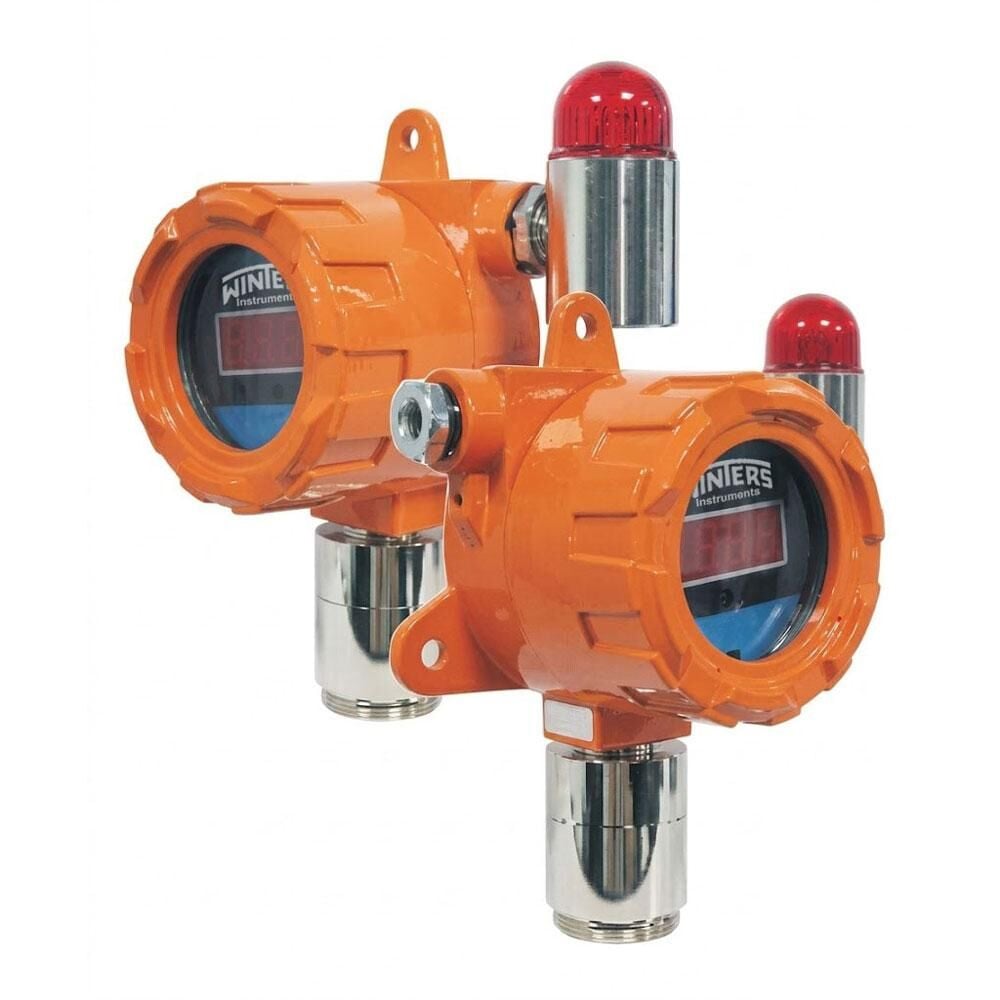

Soğutucu Kaçak Detektörleri WR serileri WINTERS 5-sene Garanti
DESCRIPTION & FEATURES
- The WR Series refrigerant leak detector is a high-performance monitoring device designed for the safety of modern refrigeration and air conditioning systems.
- The product provides standard 4-20mA or RS485 signal outputs and can be integrated into various gas alarm systems or PLC/DCS control systems.
- Each unit is equipped with a high-quality LED display and audible/visual alarm.
- The WR Series with a semiconductor metal oxide sensor monitors gas leakages.
○ Once the refrigerant gas comes into contact with the sensor surface, it reacts with adsorbed oxygen, causing a change in semiconductor resistance which triggers a signal proportional to the gas concentration.
○ The WR Series with the semiconductor sensor is an economical option for the detection of a variety of flammable and volatile organic gases, including refrigerants. - The WR Series with the NDIR Infrared sensor uses the non-dispersive infrared absorption principle.
○ The infrared light source inside the sensor emits a specific wavelength which is absorbed by the gas concentration and then calculated by measuring the intensity of light after absorption.
○ The Infrared sensor is highly responsive for specific molecular structures and offers excellent selectivity and high accuracy and is extremely suitable for monitoring critical areas. - Customization available for dedicated installations and private labelling.
- 5-year warranty.
Applications
Large refrigeration systems in food processing, cold storage logistics, large central air conditioning mechanical rooms
- Shopping malls and grocery stores with reach-in refrigerators and glass door merchandisers
- Critical infrastructure monitoring such as air conditioning systems in data centers, hospitals, and telecommunications rooms
- Industrial & transportation detection for process cooling environments and refrigerated transport vehicles
| Gas Detected | Semiconductor: Broad-spectrum Infrared: Specific gas detection |
| Range | Semiconductor: 0–500 PPM Infrared: 0–1000 PPM |
| Accuracy | Semiconductor: ±5% alarm, ±10% FS Infrared: ±3% alarm, ±5% FS |
| Output | 4-20mA (3-wire); RS485 (Modbus-RTU) |
| Power | DC24V ±15% / <2W |
| Display | LED; Resolution 1 PPM |
| Alarm | Audible & visual (≥85dB buzzer) |
| Alarm Points | 25%FS and 50%FS (two-level) |
| Response | T90 ≤30s; Warm-up <100s |
| Environment | -10–50°C (14° to 122°F), 15–90%RH, non-condensing |
| Installation | Wall-mounted; IP65; Die-cast aluminum |
