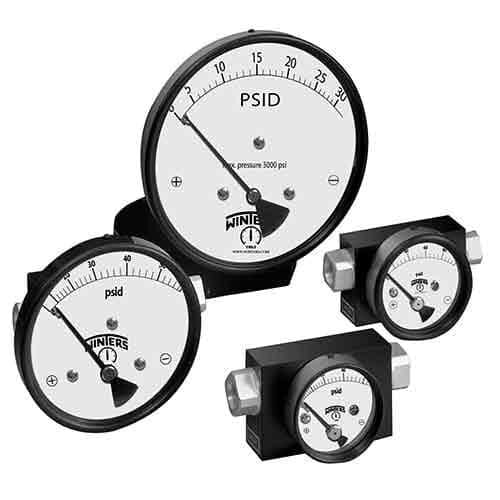

PPD Piston Basınç Göstergesi WINTERS
PPD Piston Basınç Göstergesi WINTERS
DESCRIPTION & FEATURES
- Versatile high static low differential pressure gauge
- Switches available for actuation
- ASME B40.100 compliant
- IP65 enclosure rating
- 5 year warranty
Applications
Filtration systems|Low pressure gas systems|Leak detection|Most suitable for general purpose applications including filters, pumps and chillers
| Case | Aluminum or engineered plastic |
| Lens | Shatter resistant acrylic (standard), safety glass (optional) |
| Line Connection Locations | In-line, back or bottom |
| Connections | 1/4" NPTF (standard), 1/2" NPTF, 7/16"-20 SAE |
| Wetted Parts Materials | SS piston with ceramic magnet (standard), aluminum, bronze or Monel® piston (optional) |
| Body Material | SS, aluminum, bronze or Monel® |
| Internals/Movement | Magnetic coupling using piston & spring |
| Migration of Media | Marginal |
| Seal | Buna N (standard), PTFE, FKM, neoprene |
