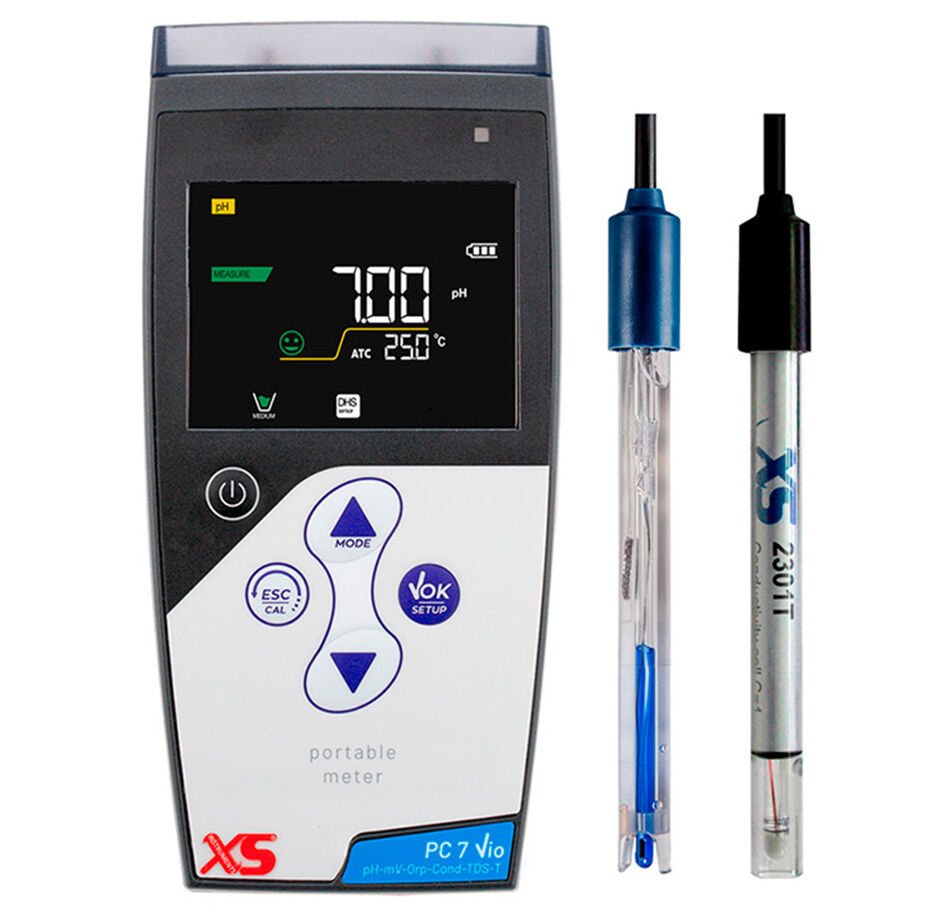

ph ve İletkenlik Ölçer Multiparametre XS PC 7 Vio Taşınır model 201 T ph elektrodu - 2301 T Hücre
ph ve İletkenlik Ölçer Multiparametre XS PC 7 Vio Taşınır model 201 T ph elektrodu - 2301 T Hücre
Professional portable multiparameter with innovative high resolution color display, for excellent data visualization in all lighting conditions, thanks also to the possibility of automatically and manually adjusting the contrast and illumination of the display.
Measurement of pH, mV, ORP, Conductivity, TDS, with temperature display and the possibility to select the parameters you want to view.
The online guide in setup and calibration allows a simple and immediate use of the device.
Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points defined by the user.
Automatic ORP calibration 1 point.
Automatic calibration of conductivity up to 5 points and 1 point defined by the user.
Adjustable reference temperature and selectable cell constant.
Indication with icons of the calibrated points.
Measurement stability indicator and possibility to select 3 stability levels.
All operations are constantly monitored and signaled to the operator via the colored LED above the display and the self-diagnosis messages.
Measuring range:
pH: 0.00 ... 14.00 (0.01 pH)
mV: –1000… + 1000 (0.1 mV)
Cond: 0.01 µS ... 200 mS (0.01 µS - automatic)
TDS: 0.01 mg / l ... 200 g / l
Temperature: 0 ... 100.0 ° C (0.1 ° C)
Supplied as standard:
Field support with 3 holes for electrodes, colored buffer solutions,
instructions for use and carrying case.
With 201T electrode and 2301T cell, both with built-in temperature sensor and 1 m fixed cable.
| Technical specifications | |
|---|---|
| Accuracy (pH) | ±0,02 |
| Accuracy (Temperature) | ±0,5 |
| Temperature calibration | Yes |
| Temperature coefficent (max) | 0,00 ... 10,00 |
| DHS compatibility | Yes |
| Temperature compensation | 0,0...80,0 |
| Automatic brightness control | Yes |
| Cell constant | 0,1 / 1 / 10 |
| Criteria for stability of the measure | Low - Med - High (pH) |
| Dimension | |
| TDS factor | 0.40 ... 1.00 |
| Warranty | |
| Inputs | BNC - RCA |
| Parameters | pH, mV, ORP, Conducibilità, TDS, Temperatura |
| Weight | 0.4 |
| mV ORP measuring range | -1000 ... +1900 |
| PH calibration points | 1...3 automatic values - 2 user values |
| pH measuring range | 0 ... +14,00 |
| Cond resolution | 0,01 / 0,1 / 1 (scala automatica) |
| ORP resolution | 1 |
| pH resolution | 0,01 |
| Temperature resolution | 0,1 |
| Cell type | 2 rings |
| Power supply | 3 x AA batteries 1.5 |
| IP rating | 57 |
| Online help | Yes |
| Recognised pH buffers | USA - NIST |
| Swabs recognised Cond | 84 µS - 147 µS - 1413 µS - 12,88 mS - 111,8 mS - 1 valore user |
| Working temperature | 0 ... +45 |
| Reference temperature | +15 ... +30 |
| Accuracy (Cond) | ±2 % f.s. |
| Display | High-definition, backlit colour LCD |
| Calibration data indication | Yes |
| Buffer used indication | Yes with icons |
| Regulations | CE |
| Calibration points Cond | 1...4 |
| ORP calibration points | 1 |
| Cond measuring range | 0,00 μS ... 200 mS |
| TDS measuring range | 0.1 mg/l ... 200 g/l |
| temperature measurement range | 0,0 ... +100 |
