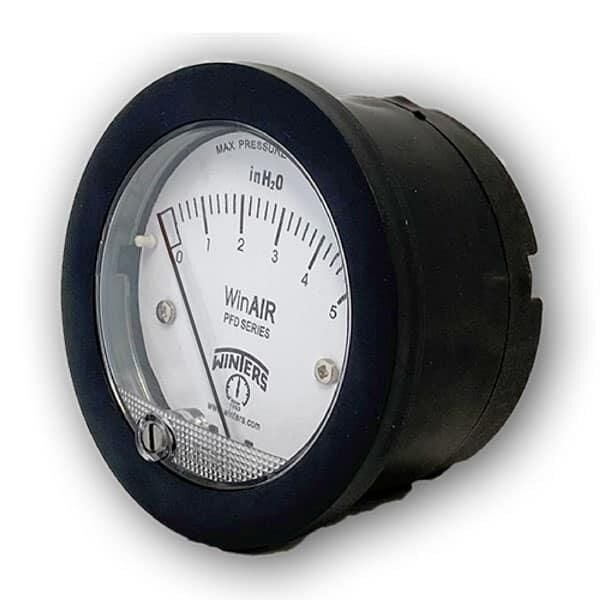

PFD WinAIR Yekpare Fark Basınç Ölçer
PFD WinAIR Yekpare Fark Basınç Ölçer WINTERS 5-sene garanti
DESCRIPTION & FEATURES
- Resistance-free differential gauge for all air and non-corrosive gas installations
- Compact size and easy to read dial
- Industrial grade nylon case
- Easily accessible re-zero adjustment screw
- 5% full scale accuracy
- Mounting bracket with screws included
- 5 year warranty
Applications
Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms
| Dial | 2 1/16” (52.4mm), white aluminum with black markings |
| Case | Glass filled nylon, black |
| Lens | Polycarbonate |
| Ring | Threaded die-cast black aluminum |
| Process Connection | 3/16" barbed for ID tubing |
| Movement | Resistance-free and magnetic |
| Pointer | Aluminum, anodized black |
| Over-pressure Limit | Maximum pressure of 30 psi / 207 kPa |
| Ambient/Process Temperatures | 20°F to 120°F (-7°C to 49°C) |
| Accuracy | ± 5% of full scale |
| Approvals | CE |
| Accessories | Panel mounting bracket, allen key, two nuts & bolts |
| Installation Attention | Only in vertical position |
| Warning | This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
