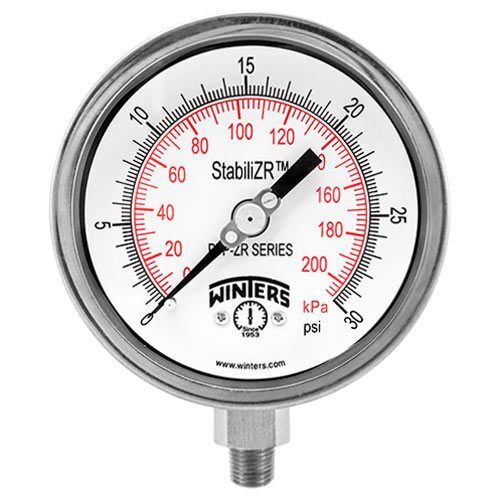

Paslanmaz Satil Basınç Ölçer PFP-ZR PREMIUM STAINLESS STEEL StabiliZR® PRESSURE GAUGE
5-sene garantili WINTERS
5-sene garantili WINTERS
Tanım ve Özellikleri
- StabiliZR®️ dampened movement minimizes effect of pulsation and vibration as effectively as liquid filled gauges
- Restrictor screw standard on dual scale (optional on single scale)
- Stainless steel case
- Under and overload stops (4” and 6”)
- Back, bottom or panel mounted
- 316L SS wetted parts
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
Applications
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, oil field equipment, pumps, compressors and process industries
| Dial | 2.5” (63mm), 4” (100mm), 6"" (150mm) white aluminum with black and red markings |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection |
2.5” (63mm) dial: 1/4” NPT 4” (100mm), 6"" (150mm) dial: 1/4”, 1/2” NPT |
| Bourdon Tube | 316L SS |
| Movement | 304 SS (under and overload stops 4"" & 6"") and StabiliZR™ dampened movement (silicone in sealed chamber) |
| Pointer |
2.5"" (63mm): Aluminum, anodized black 4"" (100mm), 6"" (150mm): Aluminum, anodized black, micrometer adjustable |
| Welding |
Laser welded socket to case |
| Over-pressure Limit |
25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,500 psi (10,342 kPa) |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -76°F to 200°F (-60°C to 93°C) |
| Process Temperature | -40°F to 250°F (-40°C to 120°C) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy |
2.5"" (63mm): ±1.5% of full scale 4"" (100mm), 6"" (150mm): ±1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
