P700 Ex Dostmann 500-0700 Ex-proof termometre

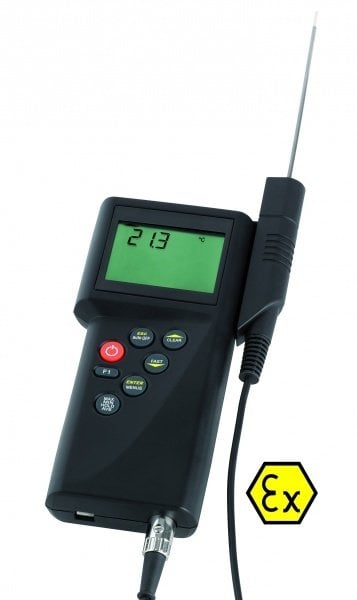

P700-EX explosion proof thermometer
Type for measuring in explosion endangered areas (temperature range -200°C...+850°C). EX-mark: EEX ib IIB T4
The universally applicable process-controlled hand-held instruments, Series P700, are ideal for measuring operations in which high accuracy counts or the possibility of online documentation is demanded.
Product features
USB interface
Optional DE-Graph Windows Software for graphic andtabular documentation
High measuring accuracy
Integrated calibration function for simple compensation of sensor tolerances
Physical 1-point, 2-point or 3-point calibration function
Measuring channels are freely assignable
Recording maximum, minimum, hold and average values
Integrated sensor holder for one hand operation
Mains operation possible
Differential temperature display
| Inputs | 1-channel, Pt100 |
| Measuring range | |
| Pt100 | -200°C...+850°C |
| Accuracy | |
| Pt100 | ±0,1°C from -100°C...+200°C 0,1 % remaining range |
| Resolution | 0,1°C remaining range |
| EX-mark | EEX ib IIB T4 |
| Connectors | DIN 8-pole |
| Working temperature | 0°C...+40°C |
| Display | 2-line LCD |
| Housing | plastic |
| Dimensions |
200 x 93 x 44 mm (LxBxH) |
| Weight |
600 g |
| Power supply | 9 V battery |
| Batterie life | appr. 20 h |
