MSR 175 Şok Taşıması için Datalogger
MSR 175 Şok Taşıma için Datalogger

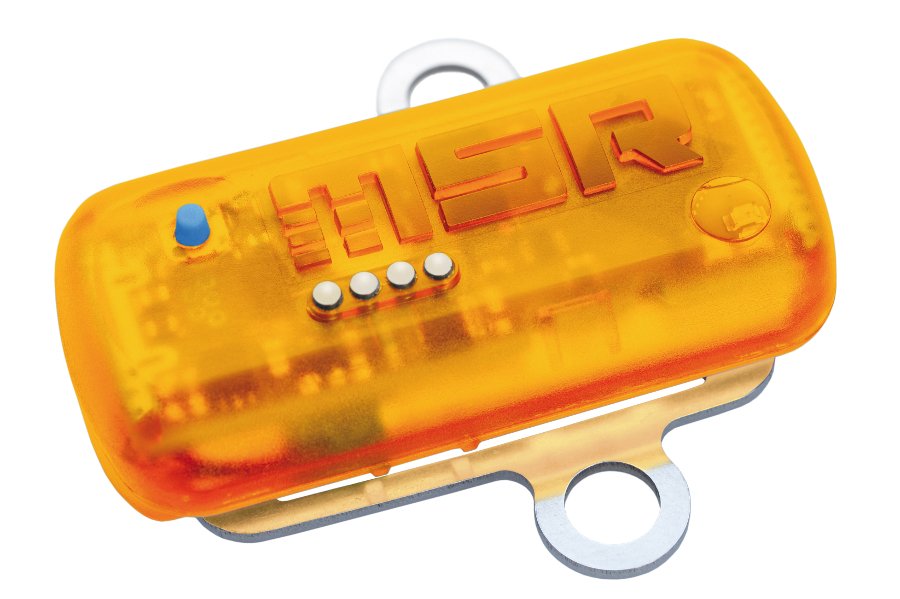

MSR 175 tek başına bir datalogger olarak taşıma esnasında mallarınızın başına gelenleri sürekli olarak kaydetmek için yüksek-çözünürlüklü sensörler kullanır. The logger data can then be analysed very accurately – be it in order to ascertain damage or to improve transport packaging – using the «MSR ShockViewer» software.

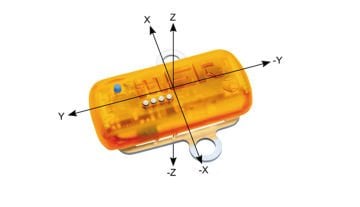

The two 3-axis acceleration sensors (± 15 g and ± 100 g) integrated in the MSR 175 record shocks at a measurement frequency of up to 5000/s. The installed memory of the logger is capable of storing over 2 million measured values, which is sufficient for more than 1,000 shocks. In addition, the MSR 175 measures and records temperature profiles from -20° to +65 °C. Additionally, a second type variant of this data logger is available with internal humidity, pressure and light sensors.

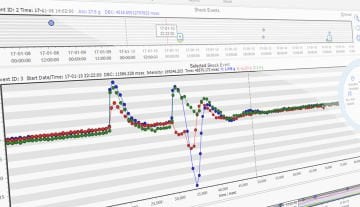

Easy-to-use PC software: The software package for the MSR175 includes 3 programs: MSR Dashboard, MSR ReportGenerator and MSR ShockViewer. The MSR Dashboard allows you to configure the loggers with just a few mouse clicks. The data recorded can be quickly transferred to a computer via the USB port. A single click on the MSR Report Generator is sufficient to call up a compact report. For a detailed measured data analysis, the MSR ShockViewer, which is integrated in the MSR175 software package as a free basic version, is at your disposal.
The two 3-axis acceleration sensors (± 15 g and ± 100 g) integrated in the MSR 175 record shocks at a measurement frequency of up to 5000/s. The installed memory of the logger is capable of storing over 2 million measured values, which is sufficient for more than 1,000 shocks. In addition, the MSR 175 measures and records temperature profiles from -20° to +65 °C. Additionally, a second type variant of this data logger is available with internal humidity, pressure and light sensors.
Easy-to-use PC software: The software package for the MSR175 includes 3 programs: MSR Dashboard, MSR ReportGenerator and MSR ShockViewer. The MSR Dashboard allows you to configure the loggers with just a few mouse clicks. The data recorded can be quickly transferred to a computer via the USB port. A single click on the MSR Report Generator is sufficient to call up a compact report. For a detailed measured data analysis, the MSR ShockViewer, which is integrated in the MSR175 software package as a free basic version, is at your disposal.
| Technical Data | |
| Housing:Size and weight: | Design housing PC, encapsulated, IP67 47 x 16 x 54 mm (W x H x L), approx. 28 g |
| Medium:Memory capacity:Colour:Key: | Air, various liquids Over 2,000,000 measurement values Amber Start measurement/retrieve status |
| 3-axis-acceleration sensors: Working range: Accuracy: Meas./storage rate: |
2 internal 3-axis-acceleration sensors ± 15 g and ±100 g (-20…+65 °C) 15 g sensor: ±0,15 g (+25 °C) 100 g sensor: up to 15 g ±2 g, up to 100 g ±5 g (at +25°C) Up to 5,000/s (±15 %) |
| Power supply: | LiPo-battery 230 mAh, charged via the USB connection, recording period up to 8 weeks |
| PC software package:Interface: | MSR175 Dashboard, MSR ReportGenerator, MSR ShockViewer (basic version) USB |
| Operating conditions:Storage conditions: | Temperature -20…+65 °C • +5 °C…+45 °C (ideal storage condition for the battery) • 10…95% relative humidity, non-condensing |
| Standards: | The MSR 175 complies with EU-Directives RoHS/WEEE. |
| Measured parameters | Working range | Accuracy | Measurement/Storage rate |
| Temperature | -20…+65 °C | ±0.5 °C (-10…+65 °C) | every 10 min. |
| Rel. humidity | 0…100% rel. humidity -20…+65 °C |
±2% rel. humidity (10…85%, 0…+40 °C) ±4% rel. humidity (85…95%, 0…+40 °C) |
every 10 min. |
| Air pressure | 0…2000 mbar absolute -20…+65 °C |
±2.5 mbar (750…1100 mbar absolute, +25 °C) |
every 10 min. |
| Light | 0…65,000 lx | max. sensitivity at 500 nm |
every 10 min. |
