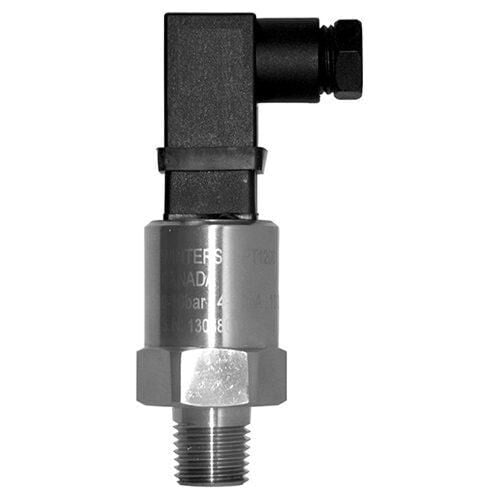

LE1 OEM BASINÇ TRANSMITTERİ WINTERS
LE1 OEM BASINÇ TRANSMITTERİ WINTERS 5-sene Garanti
DESCRIPTION & FEATURES
- Developed for OEM applications
- Compact stainless steel construction with ceramic sensor
- Available ranges include Vacuum, Compound up to 2,000 psi (100 bar)
- Wide range of mechanical and electrical connections
- ±0.5% accuracy (±1% for pressures ≤ 45 psi)
- IP65 and IP67 enclosure ratings
- CE approved
- 5 year warranty
Applications
Suitable for a variety of applications including pump and compressor monitoring, refrigeration and HVAC
| Output Signal |
Standard 2-wire: 4-20 mA / Vs = 12-30 Vdc or 12-30 Vac Optional 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc |
| Accuracy | ±0.5% FSO (±1% FSO for pressures ≤45 psi (3 x bar)) |
| Response Time | <10 ms |
| Insulation | >100 MΩ @ 50V |
| Permissible Temperatures |
Operating: -40°F to 212°F (-40°C to 100°C) Compensating: 14°F to 176°F (-10°C to 80°C) |
| Pressure Port / Housing | 304 SS |
| Wetted Parts |
Diaphragm: Ceramic (up to 2,900 psi) |
| Current Consumption |
2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA) |
| EMC |
EMI: EN50087-1/-2 EMS: EN50082-2 |
| Stability |
Vibration: 10 g / 5 Hz to 200 Hz Shock: 20 g / 11 ms |
| Operation Life | 2 M cycles |
| Approval | CE, RoHS |
