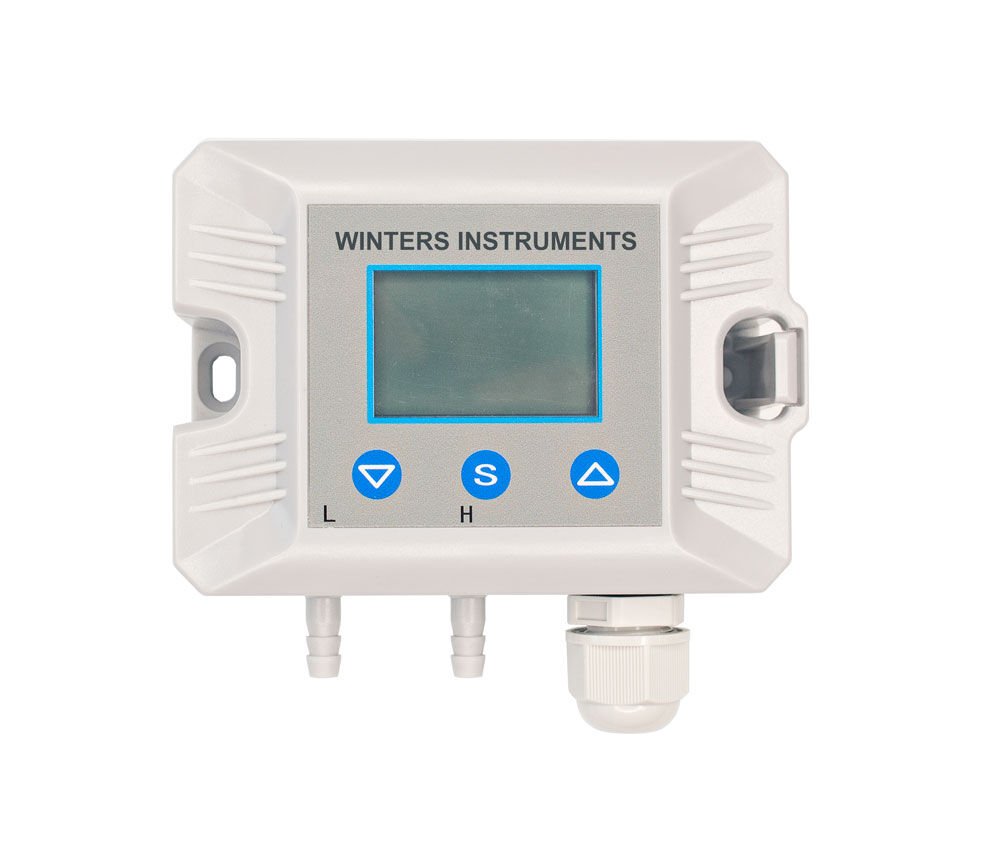

Düşük Basınç Transmiteri LFA WINTERS
Düşük Basınç Transmiteri LFA WINTERS
Spesifikasyonlar
DESCRIPTION & FEATURES
- Low pressure differential transmitter with LCD option
- Monitors and measures positive, negative, and differential pressure types
- Highly sensitive pressure sensors offer quick measurement and long-term stability
- Suitable for clean, non-flammable, or corrosive gases
- ±1% Full Scale Output
- UL94-V0, flame retardant standard
- Electromagnetic protection
- 5 Year Warranty
Applications
- Ideally suited for the pressure and differential pressure measurement of air and non-corrosive gases within HVAC control systems, including ventilation monitoring, fan control, furnace ventilation, and clean rooms
| Output Signal | 4…20 mA, 2-wire 0…10 Vdc, 3-wire RS485, Modbus-RTU |
| Power Supply | 15~30 Vdc / 15~26 Vac |
| Load Resistance | <750 Ω |
| Accuracy | ±1% Full Scale Output |
| Overload Pressure | 10 times full-scale pressure |
| Burst Pressure | 15 times full-scale pressure |
