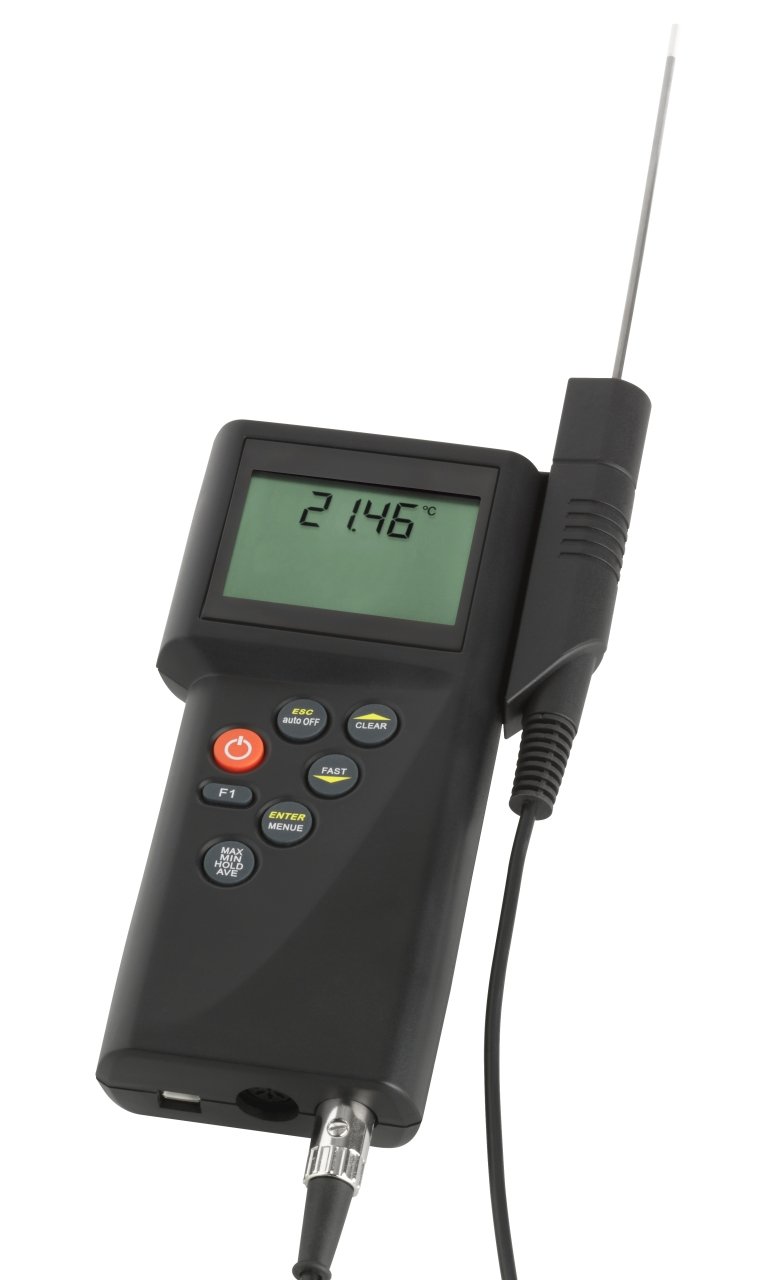

Dostmann Electronic P750 Sıcaklık ve Nem Ölçüm Aygıtı
Dostmann Electronic P750 Temperature-humidity instrument
Yüksek doğrulukta sıcaklık ve nem ölçen 1-kanallı el tipi termometre, en yüksek doğruluk ± 0,03°C (PT100)
Ürün Özellikleri
USB interface
Optional DE-Graph Windows Software for graphic andtabular documentation
High measuring accuracy
Integrated calibration function for simple compensationof sensor tolerances
Physical 1-point, 2-point or 3-point calibration function
Measuring channels are freely assignable
Recording maximum, minimum, hold and average values
Integrated sensor holder for one hand operation
Mains operation possible
Simultaneous display of two measured values
Differential temperature display
The two multi-function-instruments are outstanding for theri high accuracy of ±0,03°C. You can optional plug in Pt100 or thermocouple (type J, K, L, N, R, S, T), as well as probes for humidity and flow. The high precision makes them eminently suitable as reference instruments for testing subordinate measuring instruments in quality assurance laboratories or for checking temperature- critical processes. These instruments are frequently provided with a DKD calibration certificate.
Sipariş No.: 5000-0750 Nem Probu= 6020-1009
Teknik veriler
| Inputs | 1-channel, Pt100, thermocouple: type K, J, L, N, R, S, T, humidity, dewpoint, flow |
| Measuring range | |
| Pt100 | -200°C...+850°C |
| Thermocouple | according DIN (-200°C...+1760°C) |
| Ohm | 0...400 Ohm |
| Humidity | 0 %...100 %rH |
| Flow | 0...40 m/s |
| Accuracy | |
| Pt100 | ±0,03°C from -50°C...+199,99°C ±0,05°C from -200°C...+200°C otherwise 0,05 % |
| Thermocouple R, S | ±1,0°C +0,1 % |
| Thermocouple K, J, L, N, T |
±0,2°C from 0°C...+200°C |
| Humidity | ±1,5 %rH |
| Flow |
1 % of end value |
| Ohm | 0,5 % of measuring range |
| Resolution | 0,01°C from -200°C...+200°C otherwise 0,1°C respectively 0,1 % |
| Connectors | DIN 8-pole |
| Working temperature | 0°C...+40°C |
| Display | 2-line LCD |
| Housing | plastic |
| Dimensions | 200 x 93 x 44 mm (LxBxH) |
| Weight | 300 g |
| Power supply | 9 V battery |
| Batterie life | appr. 20 h |
