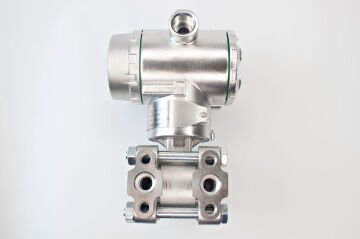

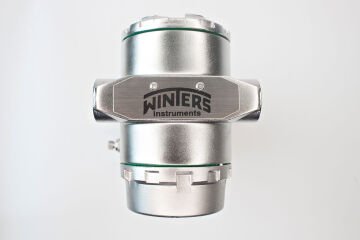

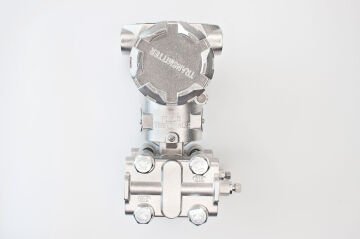

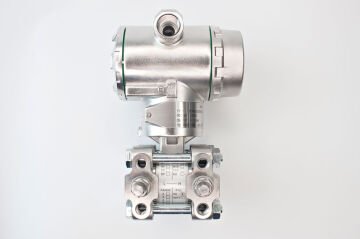

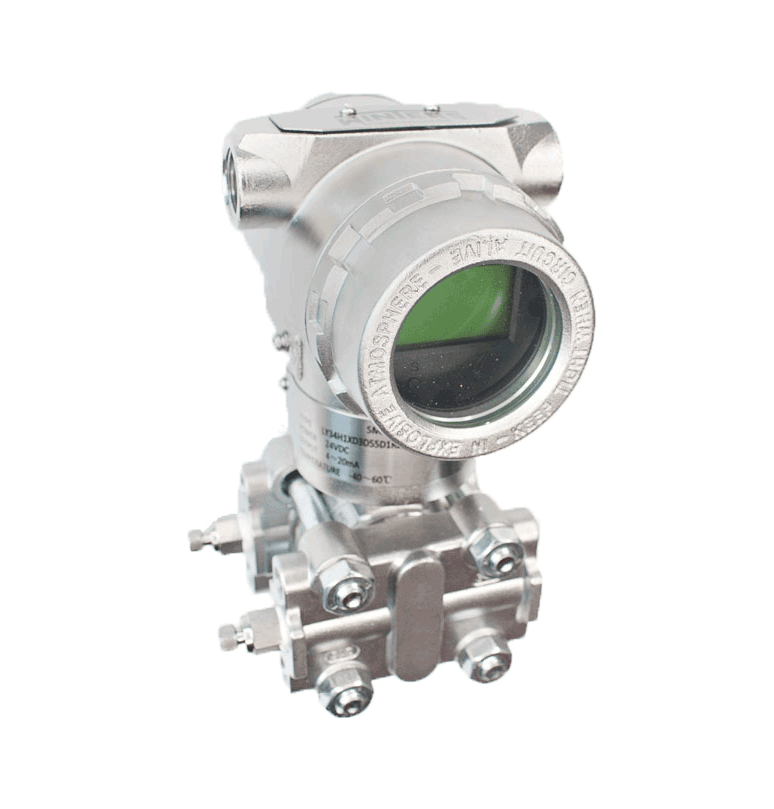

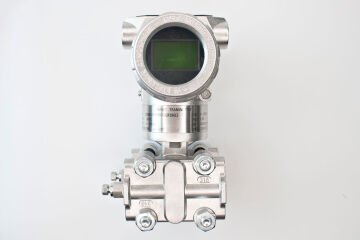

Diferansiyel Basınç Trnsmiteri WinSMART™ LY34 Differential Pressure Transmitter
Diferansiyel Basınç Trnsmiteri WinSMART™ LY34 Differential Pressure Transmitter
DESCRIPTION & FEATURES
- Ideally suited for hazardous locations requiring either a stainless steel or die-cast aluminum housing.
- Suitable for differential pressure measurement in Oil & Gas installations (on-shore and offshore), power generation, including renewable energy facilities, filtration monitoring, tank level and flow measurement in hazardous areas
- Explosion proof and intrinsically safe designs for hazardous locations
- Stainless steel and aluminum housing
- Gauge, absolute and differential pressure measurement
- 0.1% accuracy
- Simple to operate 3-push button control with 5-digit display and 100% bar graph
- 4/20mA plus HART® digital communication
- Simplified re-zero calibration via push-button fuctionality
- 10:1 rangeability allows for installation in any application
Applications
- Ideally suited for hazardous locations requiring either a stainless steel or die-cast aluminum housing.
- Suitable for differential pressure measurement in Oil & Gas installations (on-shore and offshore), power generation, including renewable energy facilities, filtration monitoring, tank level and flow measurement in hazardous areas
| Output Signal | 4/20 mA + HART, 2-wire / V = 9-32 VDC |
| LCD Display | Available with LCD display (standard) or without LCD display (optional) |
| Accuracy | 0.1% URL standard |
| Stability | 0.2% of URL for two years |
| Temperature Ranges |
Working/Media temperature: -25/95°C (with display -13/203°F), -40/185°C (without display -4/158°F) Ambient temperature: -40/60°C (with display -40/140°F), -40/115°C (without display -4/240°F) Storage temperature: -40/110°C (with display -40/85°F), -40/230°C (without display -40/446°F) |
| Working Humidity | 0-100% relative humidity |
| Housing | 304SS, 316SS, Rugged die-cast aluminum housing (painted Blue) |
| Pressure Connection | 2 x 1/4” NPT F, 1/2” NPT F adapters available |
| Diaphragm | 316L SS with BUNA-N, Hastelloy® C or Monel or Tantalum plus Vitron or PTFE o-rings optional |
| Drains & Vents | 304SS or 316SS |
| Response Time | 200 ms |
| Turn on Time | 2 seconds (with minimum Dam |
