Data Logger tekrar kullanılabilir PDF Nem ve Sıcaklık için MSR Ekonomik model
- Reusable PDF data loggers for mass application
- Internal temperature sensor, -30…+70 °C temperature range (MSR63, MSR83, MSR64, MSR84)

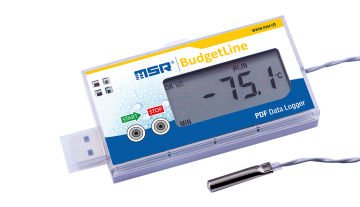

- External temperature sensor, -100…+150 °C temperature range (MSR86)
- Internal humidity sensor, 0…98 % rel. humidity range (-30…+70 °C) (MSR64, MSR84)
- 6-point-calibration certificate stored on the logger
- Available with or without display
- Life of the battery approx. 1 year, battery replaceable
- Clear status and alarm LEDs
- Automatic PDF report generation of recorded measured data
- Free MSR BudgetLine software to configure the data logger on the PC
- Fast data transfer by USB interface and straight forward assessment on the PC
Technical information of the sensors
| Sensor | Working range | Accuracy | Measurement / Storage rate |
|---|---|---|---|
| Int. temperature (MSR63, MSR83, MSR64, MSR84) |
-30…+70 °C | ±0.5 °C (-30…+70 °C) | 1 min. up to 10 days |
| Ext. temperature, cable length 1 m (MSR86) | -100…+150 °C | ±0.4 °C (-100…+150 °C) | 1 min. up to 18 hours |
| Int. relative humidity (MSR64, MSR84) |
0…98 % rel. humidity (-30…+70 °C) | ±3 % rel. humidity | 1 min. up to 10 Tage |
General technical data of the MSR BudgetLine Data Loggers
| Housing: | PC, ABS Food Grade, IP54, not encapsulated |
| Size & Weight MSR63: |
36 x 12 x 71 mm (W x H x L), approx. 17 g |
| Size & Weight MSR64, MSR83, MSR84: | 51 x 15 x 101 mm (W x H x L), approx. 52 g |
| Size & Weight MSR86: | 51 x 15 x 101 mm (W x H x L), approx. 56 g, cable approx. 1 m with sensor, sensor Ø6 x 30 |
| Resolution: | 0.1 °C |
| Memory capacity temp. data loggers MSR63, MSR83, MSR86: | 16 000 values |
| Memory capacity temp. & humidity data loggers MSR64 & MSR84: |
32 000 values (16 000 per canal) |
| Alarm: | min./max. value, indication on LED |
| Type of battery: |
3.0 V lithium battery (Panasonic CR2032) |
| Life of battery: |
approx. 1 year, battery replaceable |
| Interface: |
USB 2.0, A-Type |
| PDF-report: | automatic |
| Norms: | DIN12830, 21 CFR Part 11 |
