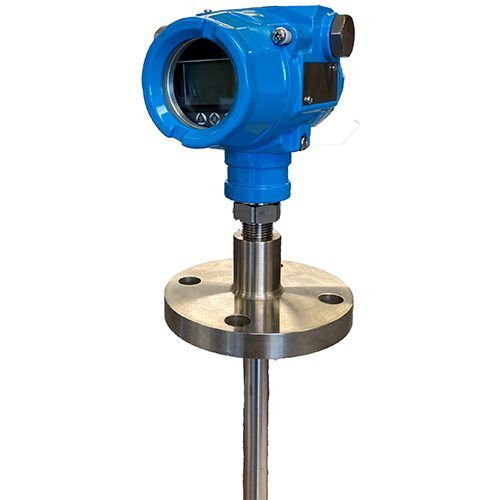

Akıllı tip ex proof Sıcaklık Transmiteri WINSMART™ TY52 SMART EXPLOSION PROOF TEMPERATURE TRANSMITTER
Akıllı tip ex proof Sıcaklık Transmiteri WINSMART™ TY52 SMART EXPLOSION PROOF TEMPERATURE TRANSMITTER
WINTERS 5-sene garantili
DESCRIPTION & FEATURES
- Integrated temperature transmitter with ASIC signaling transmitter
- Explosion proof smart temperature transmitter for hazardous locations
- -50 to 400°C (-58/752°F ) measure range
- 0.5% accuracy
- Simple to operate 3-push button control
- HART® or Modbus communications available
- Low power option available
- Re-zero function for safe field calibration
- 5 year warranty
Applications
TY52 can be utilized and installed anywhere where temperature measurement is required. From Oil & Gas installations to Power Generation, this product has a rugged design and is equipped with the communication protocols to meet all your day to day requirements
Spesifikasyonlar
Spesifikasyonlar
| Output Signal | 4/20 mA, 2-wire / V = 10.5-30 Vdc 4/20 mA + HART, 2-wire / V = 16.5-55 Vdc 1/5 Vdc, 3-wire / V = 12-30 Vdc Modbus, 4-wire / V = 12-32 Vdc |
| Sensor Type | PT100 RTD |
| Measuring Range | -50 to 400°C (-58/752°F ) |
| LCD Display | LCD display (standard) or without LCD display (optional) |
| Accuracy | 0.5% accuracy |
| Stability | 0.05% or 0.1°C / year |
| Temperature Range | Working: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F) Storage: -40/100°C (with display -20/70°C), -40/212°F (without display -4/158°F) |
| Working Humidity | 0-95% |
| Pressure Connection |
1/2” NPTM, 1/2 GM or Flanged |
| Housing | Rugged die-cast aluminum housing, painted blue |
| Wetted Parts | 316 SS, 304 SS |
| Power Consumption | =500 mW @ 24 VDC, 20.8 mA (LCD); |
| Wake Up Time | 6 seconds |
| Vibration | 4g, 2…100Hz According to IEC 60068-2-6 |
| Available Temperature Units | Celsius (oC), Fahrenheit (oF) |
| Protection Class | EMI, ESD, RFI, reverse polarity protected; Surge protection IEC1000-4-5 |
| Approvals |
|
| Protection Class | IP66 |
