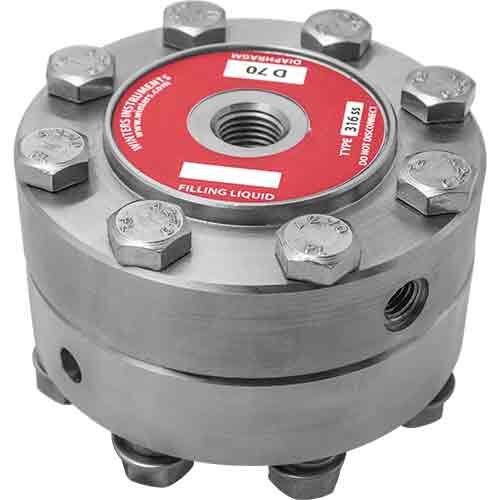

AĞIR HİZMET DİYAFRAM D70 HEAVY DUTY 2-PIECE INDUSTRIAL DIAPHRAGM SEAL
AĞIR HİZMET DİYAFRAM D70 HEAVY DUTY 2-PIECE INDUSTRIAL DIAPHRAGM SEAL
WINTERS 5-sene garanti
WINTERS 5-sene garanti
DESCRIPTION & FEATURES
- Two piece construction and designed to withstand even the most severe process applications
- “Continuous use” seals–backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
- Diaphragm is separable for servicing and is available with a 1/8” NPT or 1/4” NPT flushing connection for removing any material which may clog the process connection
- Standard diaphragm is constructed of AISI 316L stainless steel and welded to the upper chamber of the seal for pressures 30 psi (200 kPa) and above; optional Viton® diaphragm available for ranges from 30” Hg Vacuum (-100 kPa) up to 100 psi (690 kPa). Others diaphragms available
- FKM is highly recommended for applications less than 10 psi
- ASME B40.100 compliant
- RoHS compliant
- CRN registered (all 316 SS only)
- 5 year warranty
Applications
Where the process fluid is corrosive or viscous and would clog instrument internals/solidify within the pressure gauge, switch or transmitter
Spesifikasyonlar
Spesifikasyonlar
| Housing | 316L SS, Monel®, Hastelloy® C |
| Diaphragm | 316L SS, Monel®, Hastelloy® C, FKM |
| Construction | Two piece construction |
| Gasket Material | Buna N (FKM, PTFE optional) |
| Connection |
Bottom: 1/4”, 1/2”, 3/4” and 1” NPTF Top: 1/4” and 1/2” NPTF |
| Process Temperature | -22°F to 212°F (-30°C to 100°C) |
| Other |
Flushing connection available. Other materials such as PTFE, PVC, Carbon steel, acetal, Hastelloy® B, titanium, tantalum, Inconel 825, Inconel 625, Inconel 600, Duplex SS, Super Duplex SS, 316/316L Dual Certified, Monel 400 etc. are available upon request |
